For experiments in which a chemically absolutely inert environment or catalytically inactive materials are required, the use of materials with particular chemical resistance is a must. With their complete PTFE lining of the vessel, lid, and fittings, DB reactors can be used for the safe performance of experiments with highly corrosive media with a minimal risk of contamination.
Features

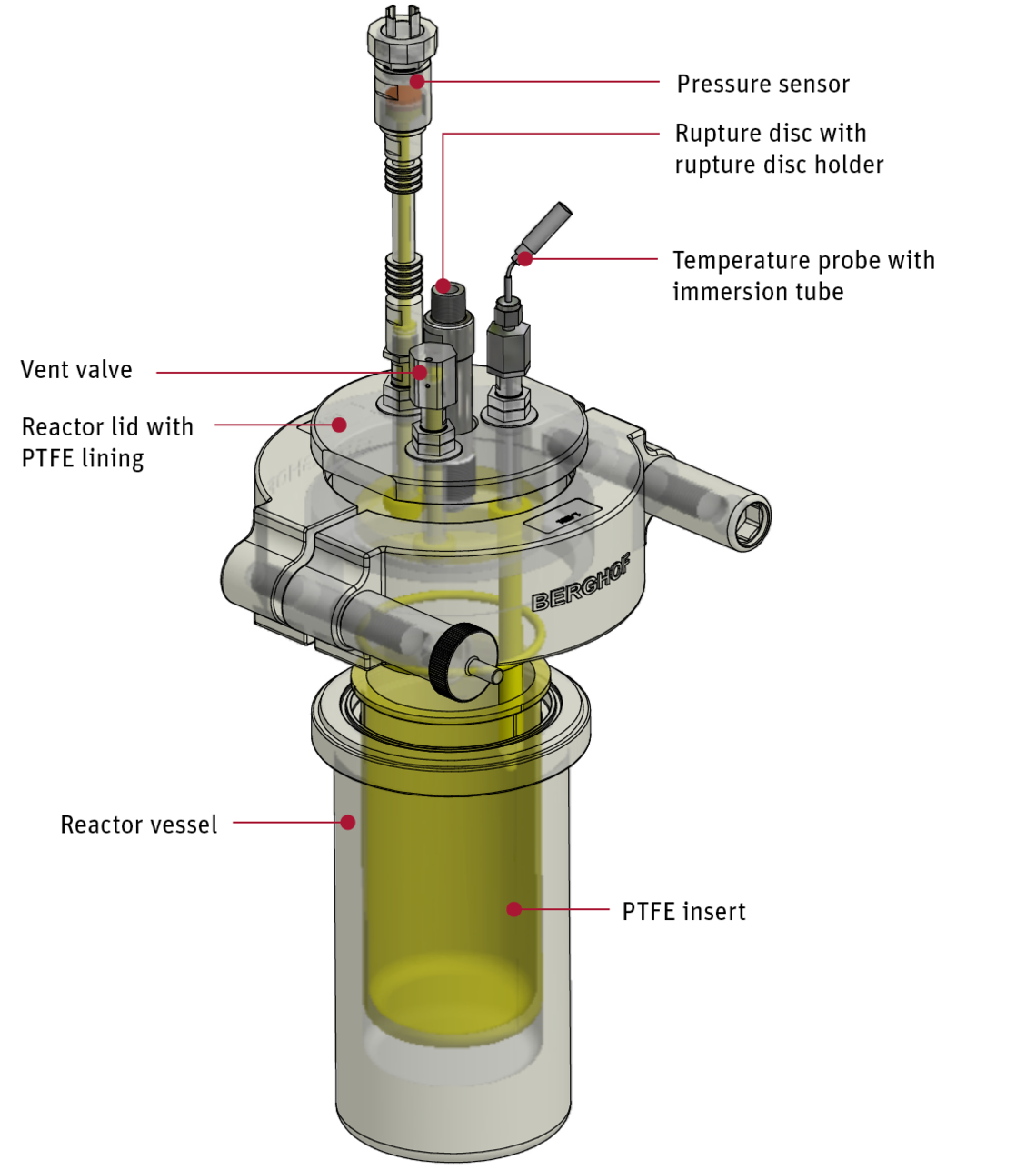

- All components in contact with media in the gaseous or liquid phase are made of PTFE, FFKM, or ceramic
- Pressure vessel of stainless steel SS 1.4571 and PTFE insert
- PTFE lid lining
- Rupture disk protected by PTFE for reliable limitation of maximum pressure
- PTFE-lined vent valve PTFE immersion tube for temperature probe Chemically inert pressure sensor Locked with clamping ring
Applications
- Purification of diamonds
- Zeolith synthesis
- Hydrothermal synthesis
