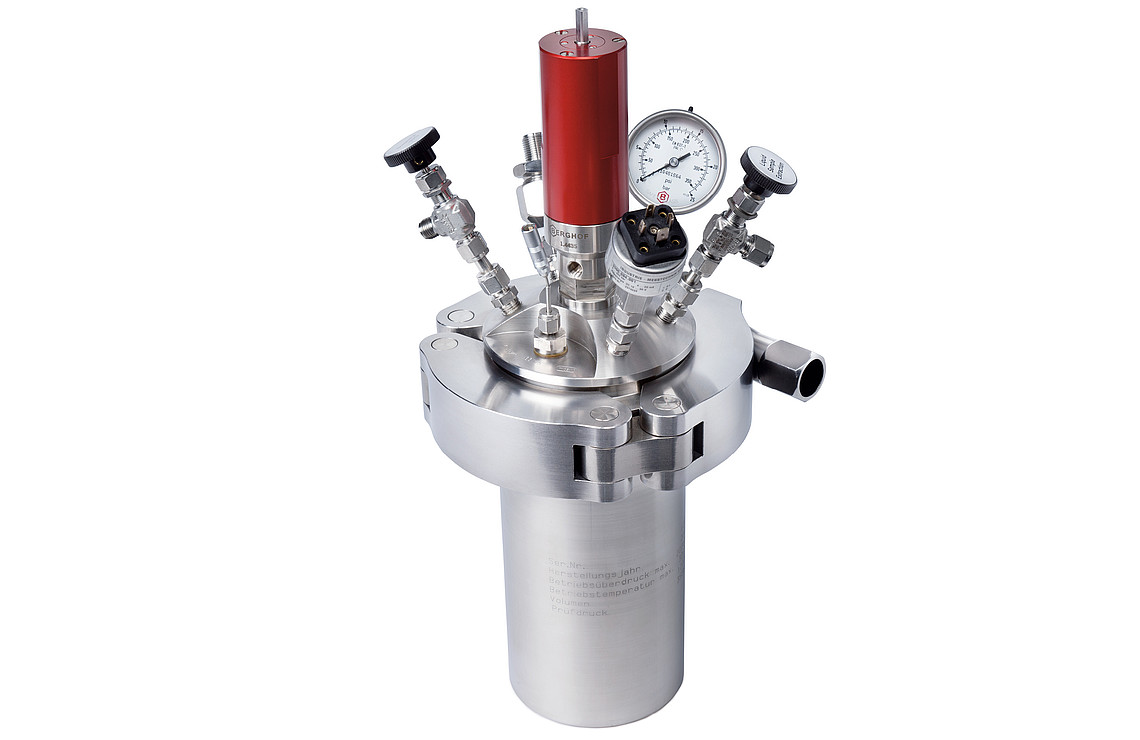

This high-pressure reactor is ideally suitable for larger experimental runs. This high-pressure reactor is available in stainless steel 1.4571 (SS 316TI), Hastelloy C-22, or with PTFE lining on all sides. The usable volume of the reactor can be varied between 1,000 ml and 2,240 ml using different reactor vessels.

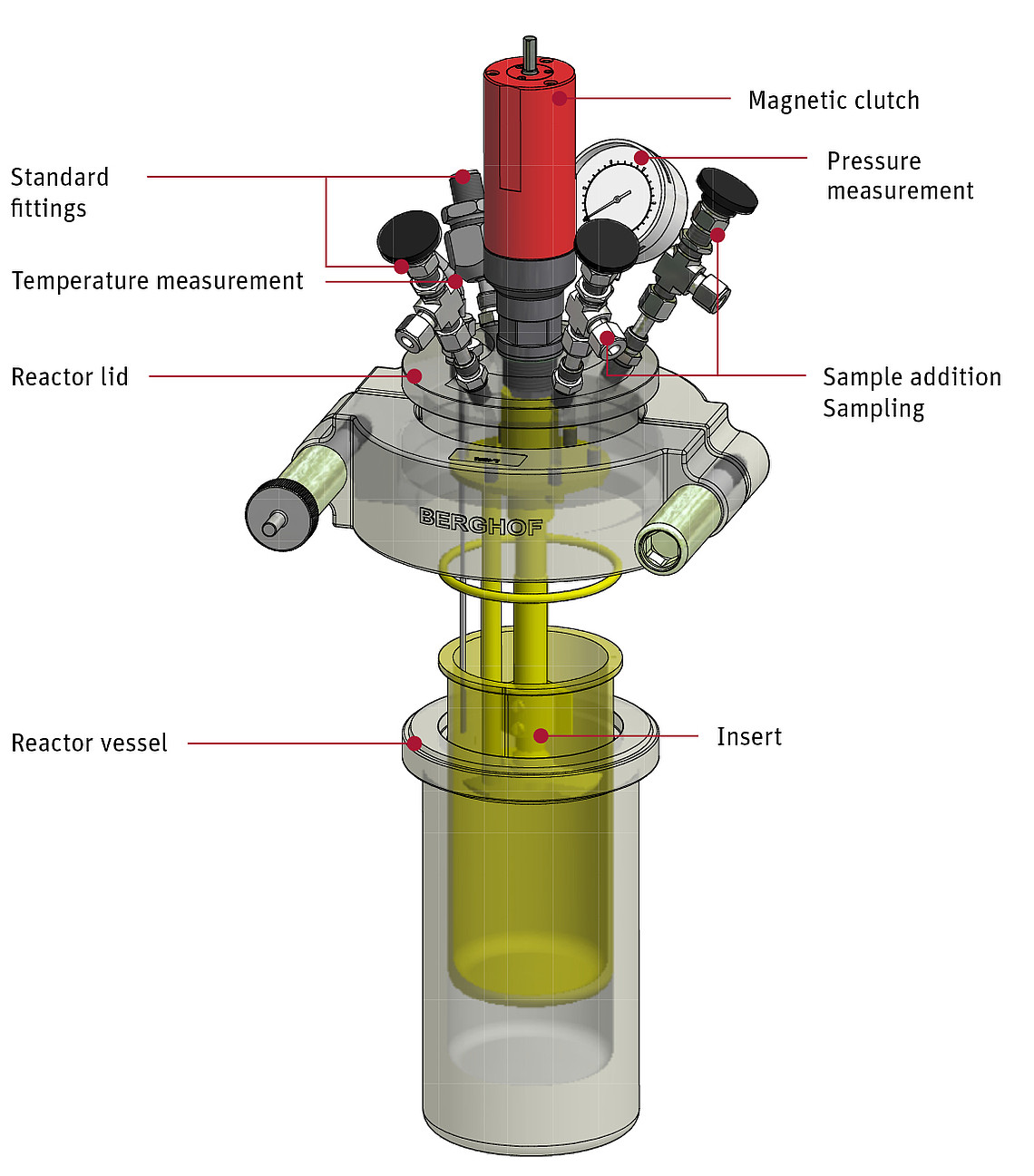

The BR 1000/1500/2000 high-pressure reactor is notable for its ease of handling. The reactor is closed using a manual quick closure that can be attached without the use of tools. The reactor seal is established using a conical flange lock and O-ring seal of PTFE, FKM, or FFKM. The appropriate fitting inserts are available in stainless steel 1.4571 (SS 316TI) or Hastelloy C-22. A total of 6 connection options are provided in the lid, which can be selected from the following:

• immersion tube for temperature probes
• rupture disc of metal for the safe limitation of maximum pressure
• pressure display
• vent valve
• 2 freely selectable fittings, for example for a gas sampling valve or liquid sampling point

Temperature is regulated using a temperature probe which detects the inner temperature of the reactor in an immersion tube. A second temperature probe can optionally be used as an independent overheating safety. Appropriate stand systems are available.
